32 Inch 2500 Nits IP65 Outdoor Advertising Display Pole Mounted Fan Cooling for Drive Thru Menus
High-performance 32-inch outdoor digital signage commercial screen by ZXTLCD. Features IP65 weatherproofing, 2500+ nits sunlight readability, & factory ...
Specifications
- Model
- ZXTLCD-OUTFHN320BL
Use a 32 Inch Pole Mounted Drive Thru Display Before the Main Menu
The main menu board is not the only place where a restaurant can help customers decide. Positioned earlier in the vehicle queue, this 32 Inch Pole Mounted Drive Thru Display can introduce a seasonal meal, breakfast offer or popular combination before the driver reaches the speaker.

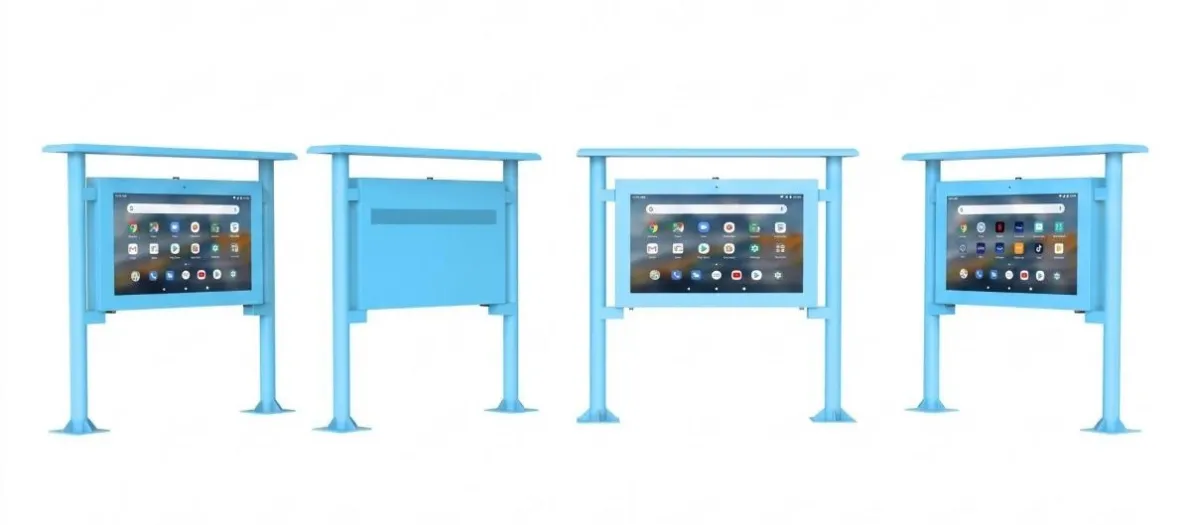

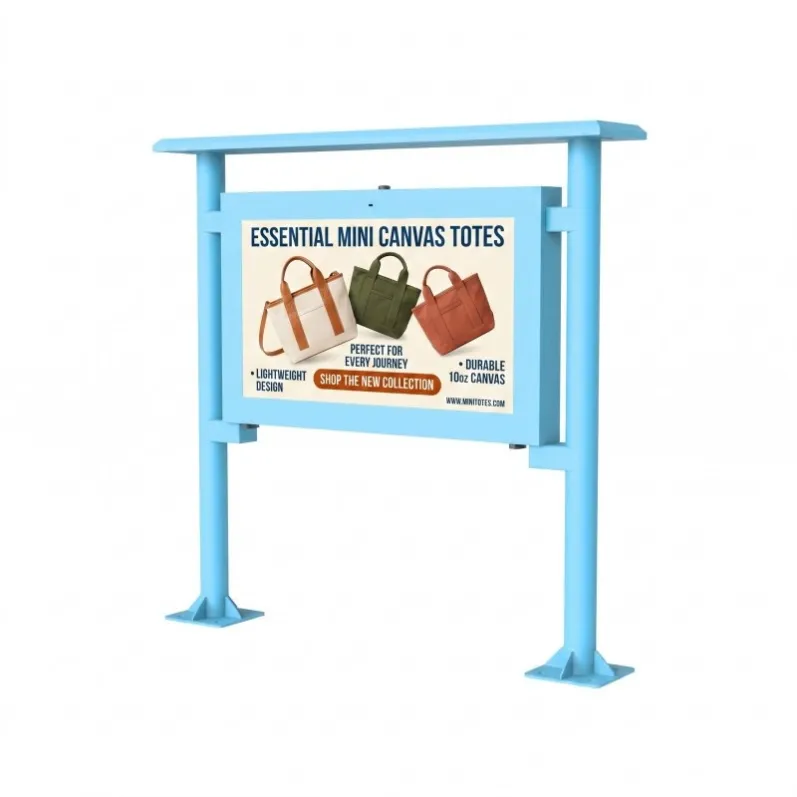

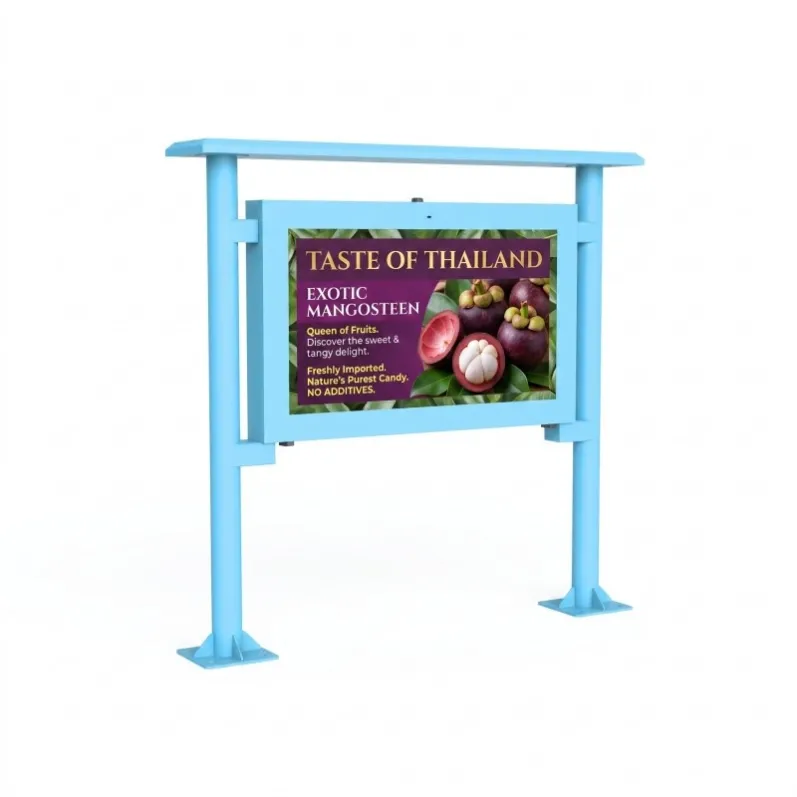

The product image shows a cyan two-post frame supporting a small landscape screen. Its open construction is less visually heavy than a full-height menu enclosure.
32 Inch Outdoor air-cooled horizontal screen floor-standing column style specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | Direct LED type |
Display dimension | 697*392mm | |
Display ration | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 2000-2500cd/㎡ | |
Contrast | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Life time | 50000 hours | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤230W | |

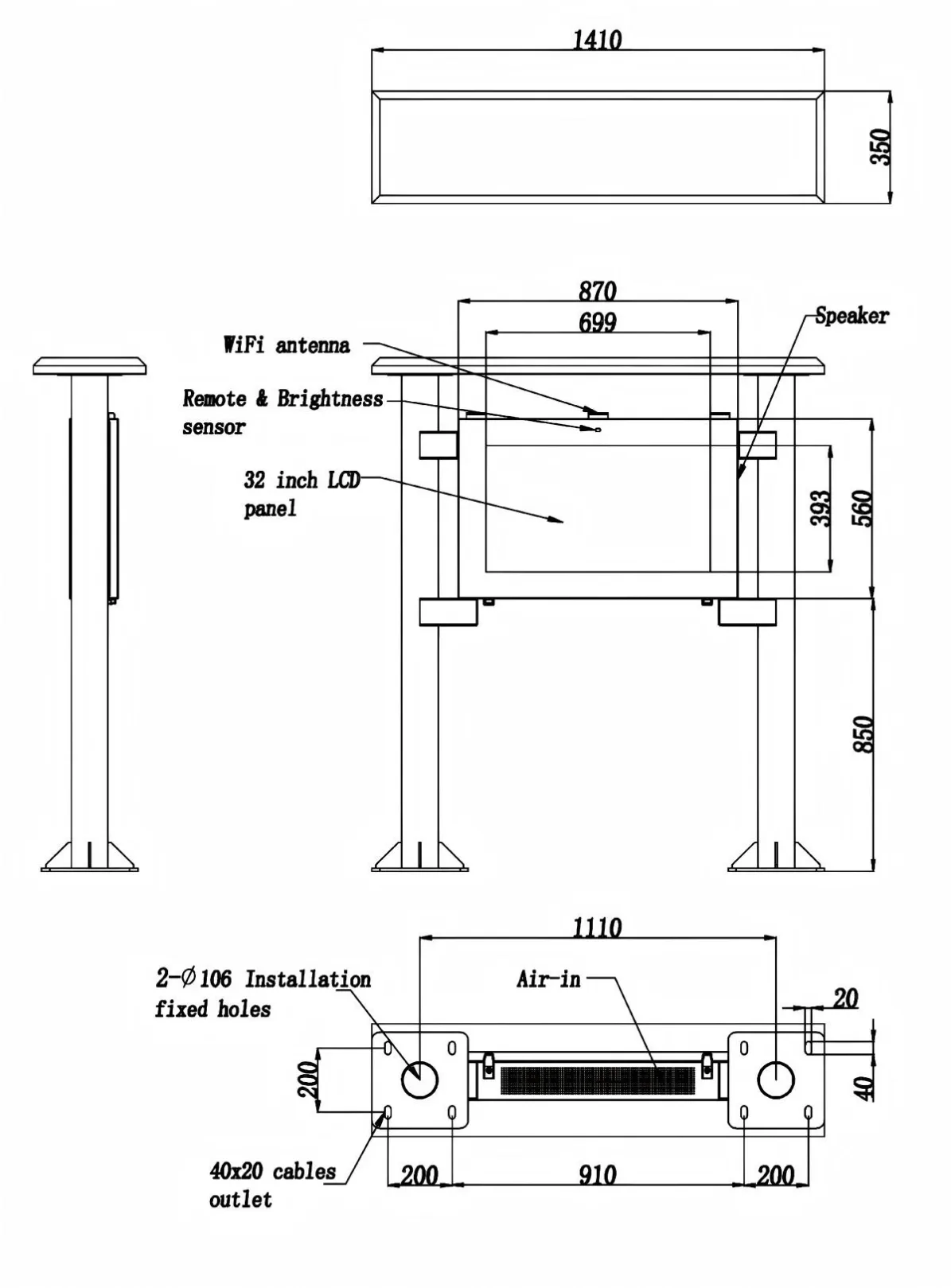

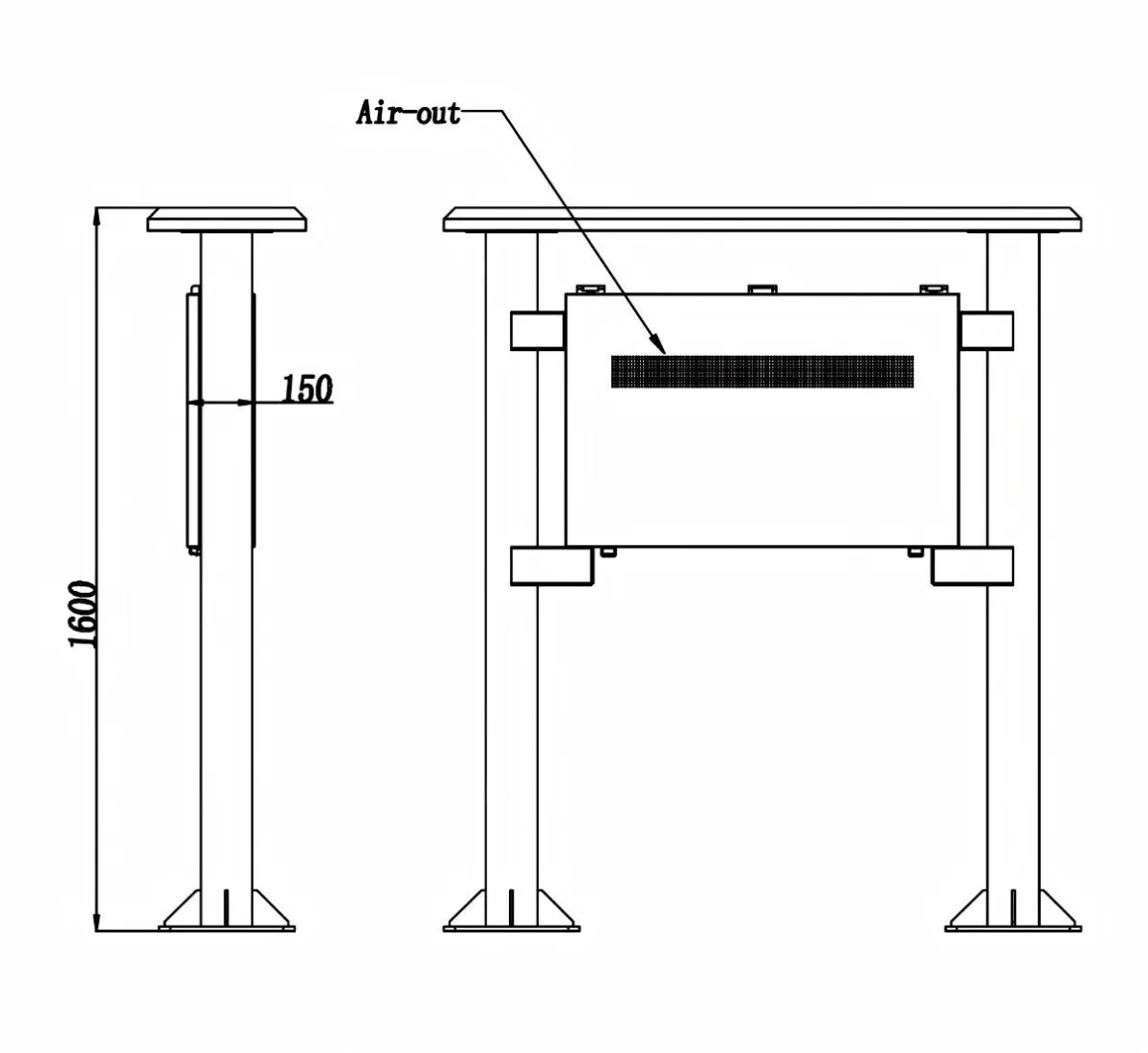

Mechanical parameters | Whole device dimension (H*W*D) | 1600*1410*350mm |
Whole device net.weight | 106kg | |
Package dimension H*W*D | 830*1020*300mm | |
Stand pole dimension H*W*D | 570*1660*510mm | |
Mechanical parameters | Whole device gross weight(kg) | 60 |
Stand pole gross weight(kg) | 100 | |
One Promotion Is Enough
At this size, the display should not reproduce the restaurant’s complete menu. Effective content may include:
- One limited-time meal
- A breakfast combination
- A current price promotion
- One high-margin upgrade
- A mobile-order reminder
- Lane or payment instructions
Drivers need to understand the message while the queue is moving.
Placement Before the Ordering Point
The 32 Inch Pole Mounted Drive Thru Display can reduce decision time when installed several vehicle lengths before the main menu. It should remain outside mirror clearance and turning paths.
Content must be reviewed from inside a vehicle. Text that is readable while standing beside the screen may be too small through a windscreen.
Restaurant-Site Maintenance
The display combines 2500-nit brightness, IP65 protection and fan cooling. Ventilation openings may collect road dust, vehicle emissions and airborne food residue, requiring regular inspection.
The 32 Inch Pole Mounted Drive Thru Display performs a narrow but useful task: it prepares the customer to order before reaching the main menu board.
