Built-in Fan Version
Outdoor Advertising Display 86 Inch Horizontal Fan Cooling for Smart City Media
High-performance 86-inch outdoor digital signage commercial screen by ZXTLCD. Features IP65 weatherproofing, 2500+ nits sunlight readability, & factory ...
Specifications
- Model
- ZXTLCD-OUTFHW860LB
86 Inch Smart City Outdoor Display for Civic Information Dashboards
This 86 Inch Smart City Outdoor Display is better suited to a structured public-information dashboard than a conventional portrait advertising layout. Its broad landscape screen can present maps, service notices and location-based updates in separate but coordinated areas.
The image shows a substantial dark enclosure with an orange-toned campaign. Its scale suits open civic spaces where information must remain visible beyond the immediate wall.
86 Inch Outdoor horizontal wall-mounted display Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | DLED |
Display size(mm) | 1896*1066 | |
Display ratio | 16:9 | |
Resolution | 3840*2160 | |
Brightness | 2000-2500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤1300W | |

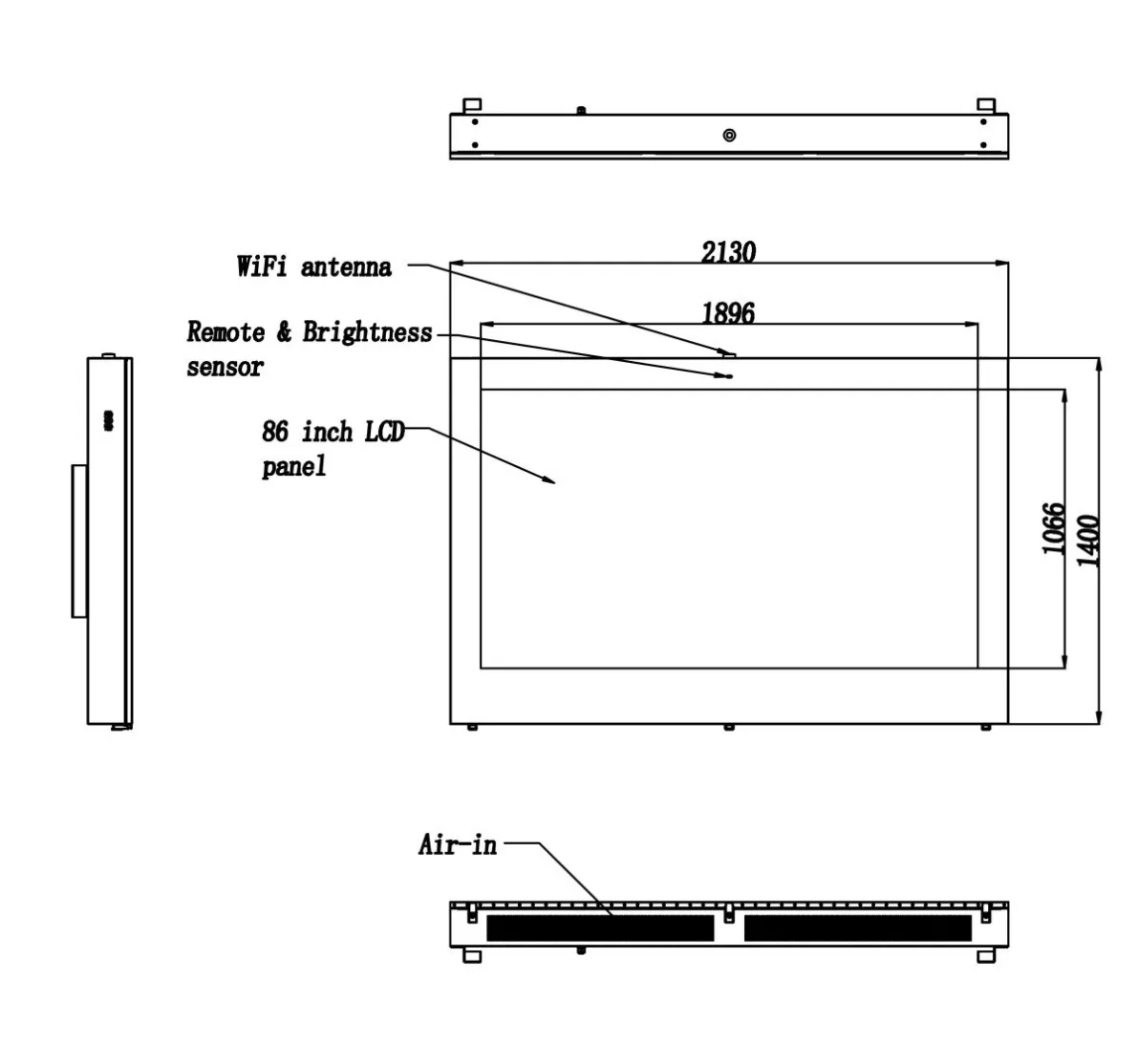

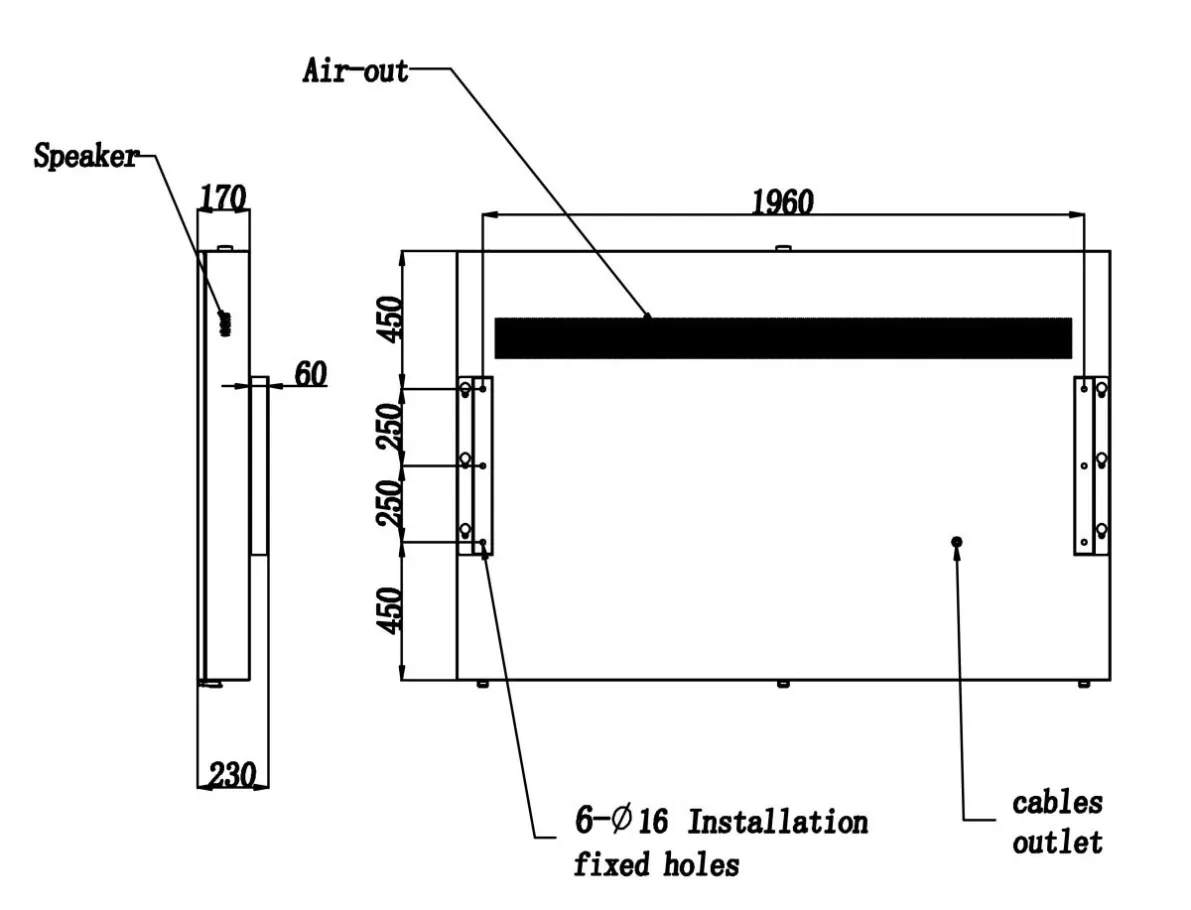

Mechanical Para | Machine seize H*W*D(mm) | 2130*1400*170 |
Net weight(Kg) | 230 | |
Package size H*W*D(mm) | 1670*2280*320 | |
Gross weight(Kg) | 280 | |
A Three-Layer Information Model
Immediate information
Emergency messages, access changes and temporary closures.
Location information
Maps, public transport, facility directions and nearby services.
Supporting information
Community events, environmental updates and approved sponsorship.
This order ensures that public-service content remains more prominent than routine promotional material.
Location Determines the Dashboard
A screen outside a transport facility should not show the same page as one beside a park or government building. The 86 Inch Smart City Outdoor Display should receive a location-specific dataset and publishing schedule.
Sensitive or live data should only be displayed when the source, update interval and failure behaviour are understood. A timestamp is useful when information changes throughout the day.
Outdoor Deployment
The product uses fan cooling and a weather-protected enclosure. Installation teams need to consider screen orientation, mounting structure, network reliability and maintenance clearance.
The 86 Inch Smart City Outdoor Display should be monitored for connectivity, internal temperature and content status. A large public screen displaying outdated information can be more damaging than having no screen at all.
