Built-in Air conditioner
Weatherproof Digital Signage 49 Inch Horizontal Air Conditioning for Bus Station Wayfinding
High-performance 49-inch outdoor digital signage commercial screen by ZXTLCD. Features IP65 weatherproofing, 2500+ nits sunlight readability, & factory ...
Specifications
- Model
- ZXTLCD-OUTAHW490P
49 Inch Horizontal Bus Station Display for Route Information
A wide screen is particularly useful when several routes must be compared side by side. This 49 Inch Horizontal Bus Station Display can present a route table, local map and service notice without forcing passengers to move through many separate pages.

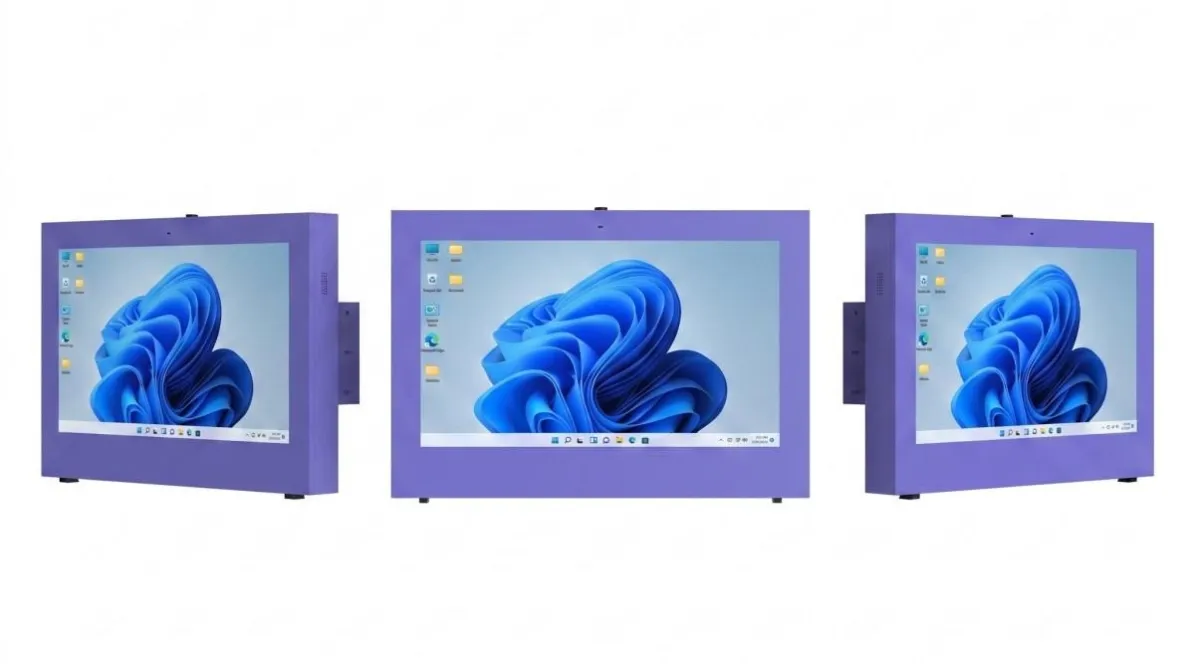

The product image shows a purple landscape enclosure intended for wall or structure-mounted outdoor installation.
49 Inch Outdoor horizontal wall-mounted display with air-cooling specification | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel Spec | Backlight type | ELED |
Display size(mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||
Built-in Air conditioner for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust internal temperature |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |
Mechanical Para | Machine seize H*W*D(mm) | 1280*810*150 |
Net weight(Kg) | 75 | |
Package size H*W*D(mm) | 1080*1430*300 | |
Gross weight(Kg) | 105 | |
Avoid Rapid Page Rotation
Passengers often begin reading at different moments. Essential route information should remain visible, while less important notices can rotate in a limited section.
The 49 Inch Horizontal Bus Station Display should use transport-system colours consistently and avoid commercial graphics that resemble route warnings.
Outdoor Station Conditions
The backend specifies built-in air conditioning. The enclosure is designed for outdoor operation, but installation details still need to address wall strength, drainage and service access.
A stored fallback screen should show the stop name, operator and basic routes if live data becomes unavailable.
The 49 Inch Horizontal Bus Station Display provides the most value when its wide format is used to compare routes clearly rather than to reproduce a conventional advertising video.
