Built-in Fan Version
Outdoor Advertising Display 49 Inch Vertical Fan Cooling for Mall Promotions
High-performance 49-inch outdoor digital signage commercial screen by ZXTLCD. Features IP65 weatherproofing, 2500+ nits sunlight readability, & factory ...
Specifications
- Model
- ZXTLCD-OUTFVP490BR
49 Inch Vertical Outdoor Advertising Display for Open-Air Retail Areas
The product image shows a warm brown enclosure with a narrow portrait screen. Its cabinet color and smaller format give it a more furniture-like appearance than large industrial outdoor kiosks.
This 49 Inch Vertical Outdoor Advertising Display is specified with 2500-nit brightness, IP65 protection and built-in fan cooling.
49 Inch Outdoor floor standing digital signage Built-in Fan for Ventilation | ||
|---|---|---|
The containment structure | The material and feature of shell | IP65 waterproof enclosure, 1.5mm zinc coated steel, waterproof and anti-dust design. |
Glass feature | with 6mm Tempered explosion-proof Glass above the screen panel | |
Panel para | Backlight type | ELED |
Display size( mm) | 1074*604 | |
Display ratio | 16:9 | |
Resolution | 1920*1080 | |
Brightness | 1500cd/㎡ | |
Contrast Ratio | 3500:1 | |
View angle | 178°（H）/178°（V） | |
Response time | 6ms | |
Lifespan | 50000H | |
Touch Overlay for Interactivity(Optional) | Touch style | Projected Capacitive Touch screen |
Touch points | 10 points | |
Ambient light sensor | auto dimming, with light sensor, automatically adjust the brightness. | |
Built-in Android Media Player PCB Board Configuration | Processor Chip | RK3576, six core |
RAM | 4GB | |
Flash Memory Card | 32GB | |
Wifi and 4G | Yes | |
Version | Android 14.0 | |
Built-in PC Board Configuration(Optional) | CPU | Intel Core i5 Processor |
RAM | 8GB DDR4 | |
Storage | 128GB SSD | |
Operating System | Windows 10 / Windows 11 | |
Graphics | Integrated Intel UHD Graphics | |
Network | LAN + WiFi Wireless Network | |
Media Format | Video format | wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
Audio format | MP3, WMA | |
Photo format | BMP, JPEG, PNG, GIF etx | |
Onboard interface | Network port | RJ45, 10M/100M Adaptive Ethernet |
HDMI | 1 | |
USB | 2 | |
Camera | Built-in 5 Megapixel Camera with 1920X1080 Resolution | |
Speakers | Dual side speakers for Audio | |
ECU | Switch power supply | Industrial Power supply |
Waterproof speaker | High quality waterproof 10W speaker | |
Thunder Preventer | The tree-level lightning protection | |
Leakage protective device | Defend Electricity Leakage | |
Timer | Set up on/off time on day/week/month | |
Outdoor OMC system（optional） | inlcudes 10 kinds sensors (light sensor, door openning sensor, humidity sensor, temperature sensor, vibration sensor, safety monitoring sensor, ponding sensor, smog sensor, collision sensor,tilt sensor). | |
Problem and staus monitoring software included. | ||
Touble shooting by software included. | ||
Use softwae Remote Check key working performance by Group | ||
Unnormal work alarm generation | ||

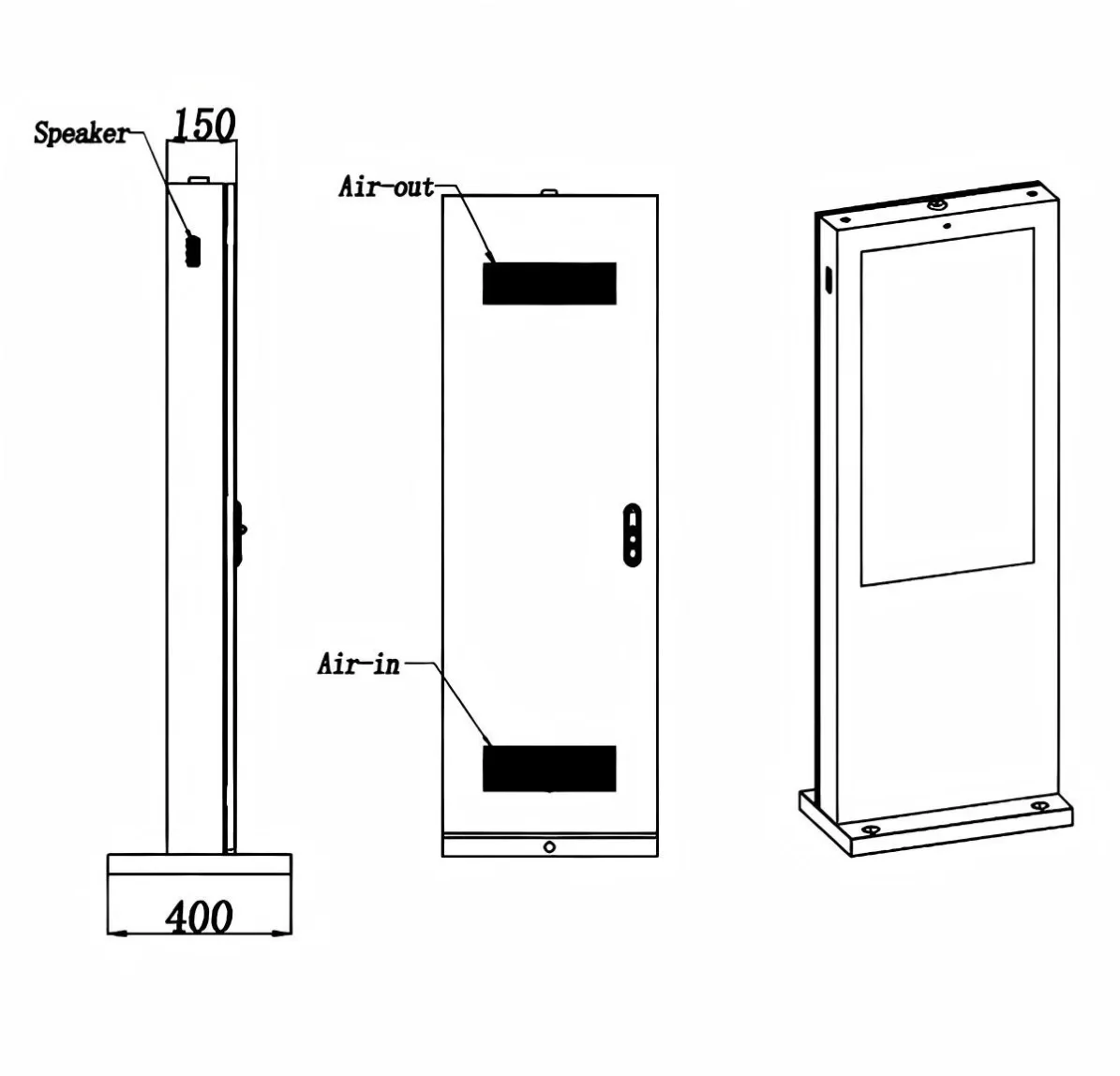

Built-in Fan for Ventilation | Intelligent Straight ventilation Cooling system | Intelligent cooling system, unique design of air duct and main board, automatic adjust wind speed |
Intelligent temperature sensing system, Once high temperature arises, the display shutdown automatically | ||
Environment | Working temperature | 0℃～+50℃(Optional heater installed up to -20℃～+50℃) |
Working humidity | 10%～90% | |
Working Voltage | AC110-240V,50/60Hz | |
Max Power Consumption | ≤400W | |

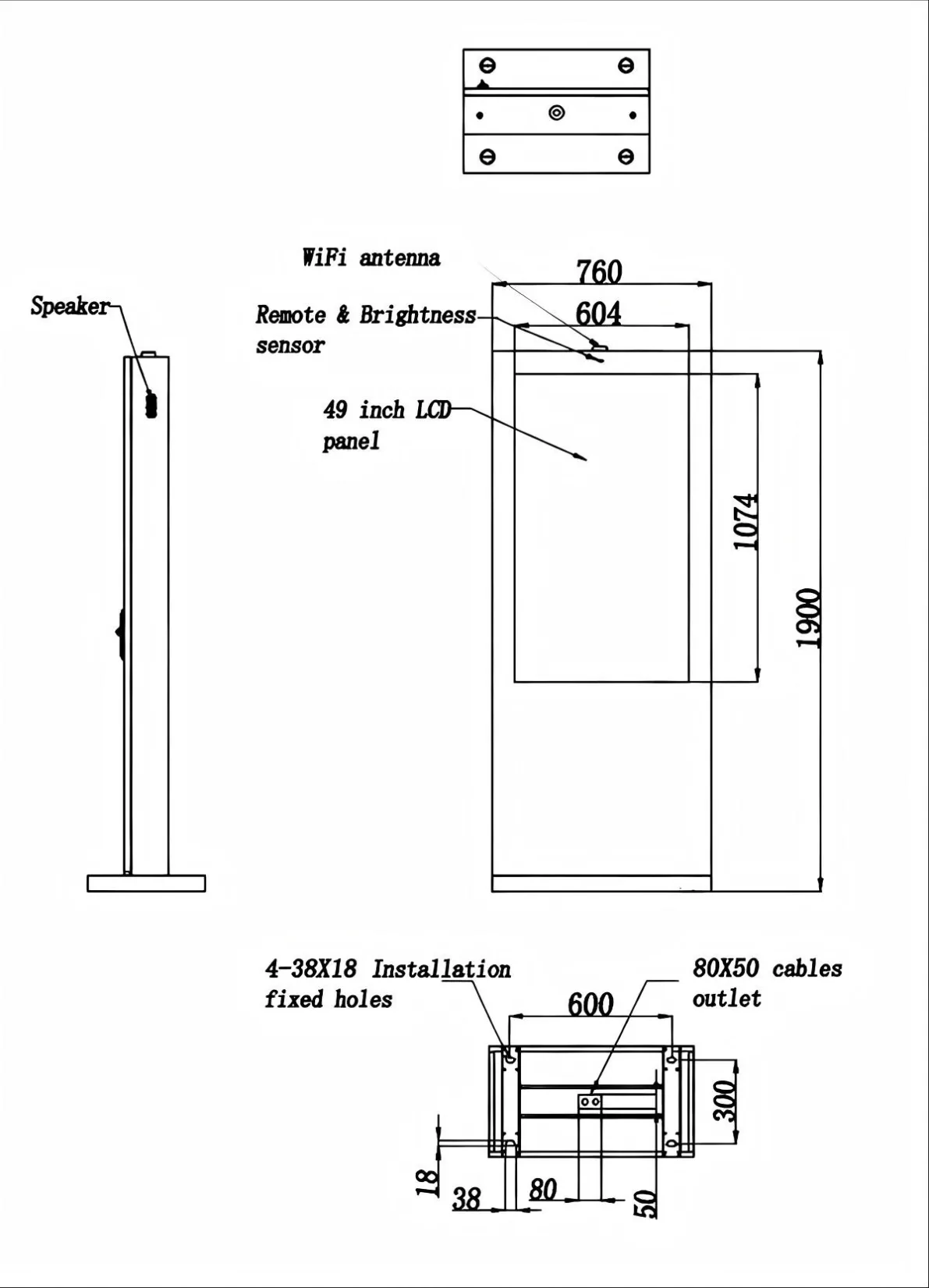

Mechanical Para | Machine seize H*W*D( mm) | 1900*760*150 |
Net weight | 90 | |
Package size H*W*D( mm) | 990*2050*470 | |
Gross weight(Kg) | 130 | |
A Smaller Campaign Near the Store
The display can sit near an outdoor-facing shop, restaurant terrace or open-air shopping path. At this scale, customers should pass relatively close to the screen.
Suitable content includes a single product launch, current offer, outdoor event promotion or direction to a nearby store.
Using the Brown Cabinet
The warm enclosure shown in the image may coordinate with timber, brick or natural-toned retail architecture. It could be less visually intrusive than a black cabinet in landscaped shopping areas.
The finish shown is not a guaranteed production standard. Color reference, corrosion-resistant coating and logo placement should be documented.
A Different Job From a Large Mall Screen
The 49-inch format is not intended to dominate an entire exterior plaza. Its role is to influence customers near a specific retail decision point.
High-contrast creative material helps the 2500-nit panel perform in outdoor light. IP65 protection and fan cooling support exposed operation.
The 49 Inch Vertical Outdoor Advertising Display gives outdoor retailers a focused portrait campaign surface where a larger kiosk would be unnecessary.
