What Makes a Wind-Resistant Floor-Standing Outdoor Advertising Display?
Learn how enclosure structure, foundation planning, thermal control and protection support a floor-standing outdoor display.
Why Choose a Floor-Standing Outdoor Advertising Display?
You can always see it in commercial pedestrian streets, community entrances, park squares, scenic area guides, and even gas stations... A floor-standing outdoor advertising display needs a stable base and a verified fixing method.
Core Advantages of a Floor-Standing Outdoor Advertising Display
Independent landing, no need to pick up walls: no need to rely on the outer wall of the building, it can be installed in an open space, and the approval is relatively simple. Double-sided/single-sided optional, flexible information display: it can be used as a one-way guide sign or a double-sided commercial advertisement. Moderate height and touch-friendly: the mainstream height is between 1.9m and 2.2m, making it comfortable for adults to operate and interactive for children. Wind and earthquake resistant, all-weather operation: a true outdoor model that can withstand typhoons, high temperatures, and heavy rains. What our factory does is to take every detail one step further based on these foundations.

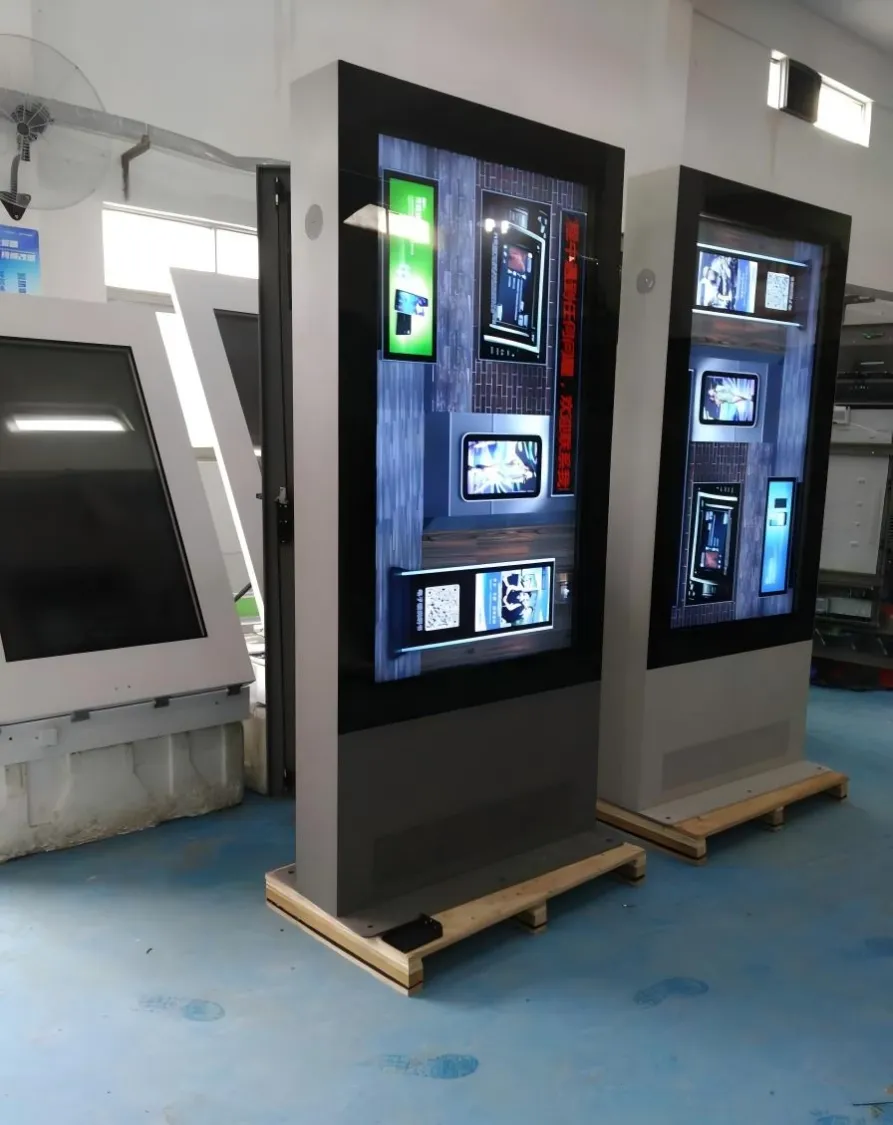

Inside a Floor-Standing Outdoor Advertising Display
Sheet metal structure: Thicker is not better, but thicker where it should be
Base: 8mm~10mm bent steel plate with internal reinforcement to ensure stability on the windward side. Column: integral welding or high-strength splicing, with holes and maintenance space reserved. Shell: Outdoor powder coating, salt spray test ≥500 hours, no fear of corrosion in seaside cities. The coating system should be selected according to the corrosion risk at the installation site.
Heat dissipation system: the "vital gate" of outdoor screens, we use double insurance
Under direct sunlight outdoors, the temperature inside the machine may soar above 60°C. If the heat dissipation is not done well, the LCD screen will turn yellow, age, and become black within two years.
Our solution. Intelligent temperature-controlled air conditioner (the widely used option for hot and humid areas in the south) High-efficiency air cooling + dust-proof filter (lower cost in dry northern areas) Automatic start-stop logic: automatic cooling when the internal temperature is higher than the set value, and automatic shutdown when the internal temperature is lower than the threshold, saving power and quiet. Actual measurement: The ambient temperature is 40℃, the temperature behind the screen is controlled within 45℃, and the frequency is not reduced 24 hours a day, 7 days a week.
High-brightness screen + automatic dimming, the brighter the sun, the clearer you can see
Brightness: 1500nit Automatic light sensor: adjust the backlight brightness in real time according to the ambient light. It is not dark during the day or dazzling at night, while avoiding unnecessary backlight power.
Waterproof and dustproof: IP55/IP65, still working in heavy rain
Fully sealed structure + water conduit design, waterproof connectors for key interfaces, and sealing rings at the outlet. Water-resistance claims should be confirmed through the specified enclosure test and installation details.
Application Locations for a Floor-Standing Outdoor Advertising Display

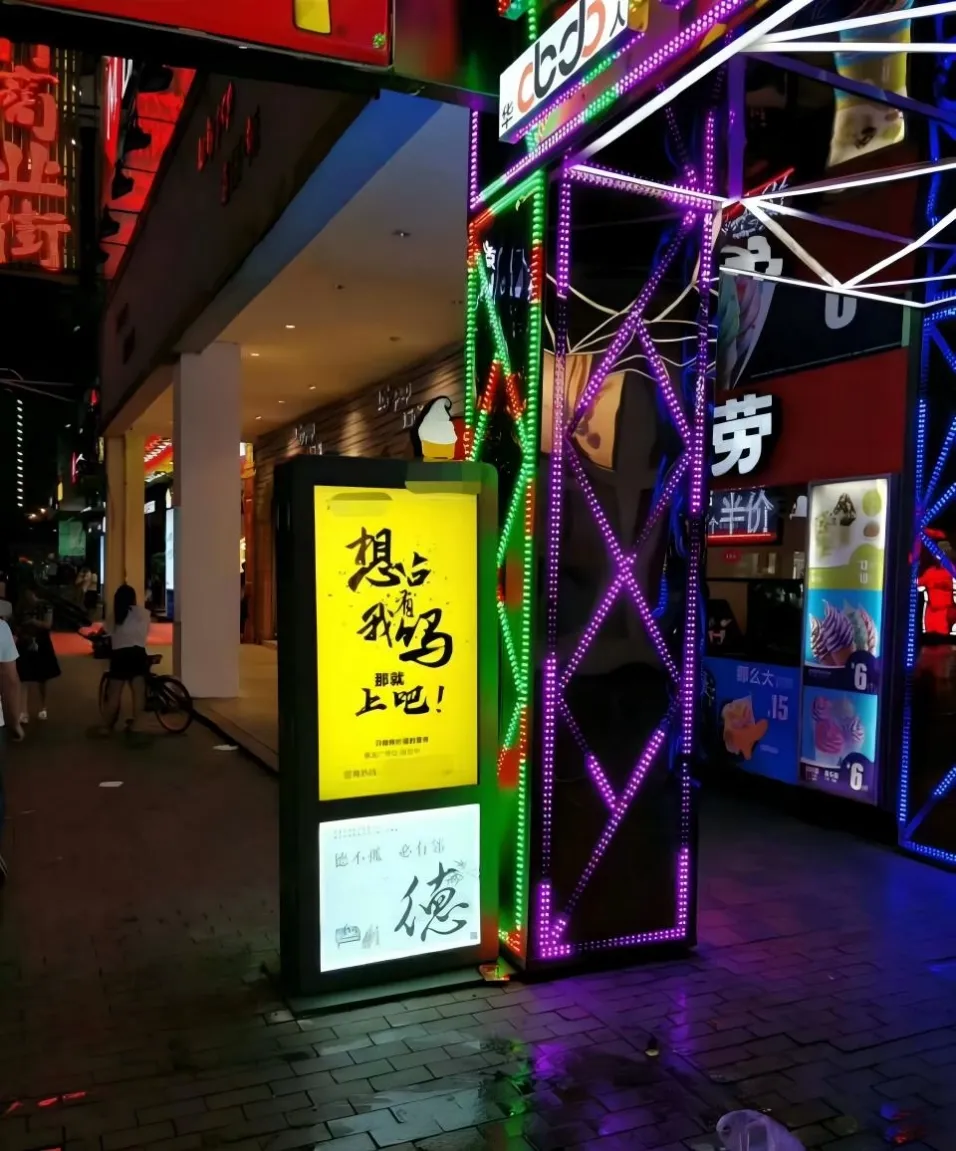

🏬 Commercial complex: Pedestrian street entrance guidance, brand image display
🏞️ Smart scenic spot: electronic guide map, scan code to buy tickets, traffic flow reminder
🏘️ High-end residential area: property notification, community commercial advertising, face recognition access control linkage

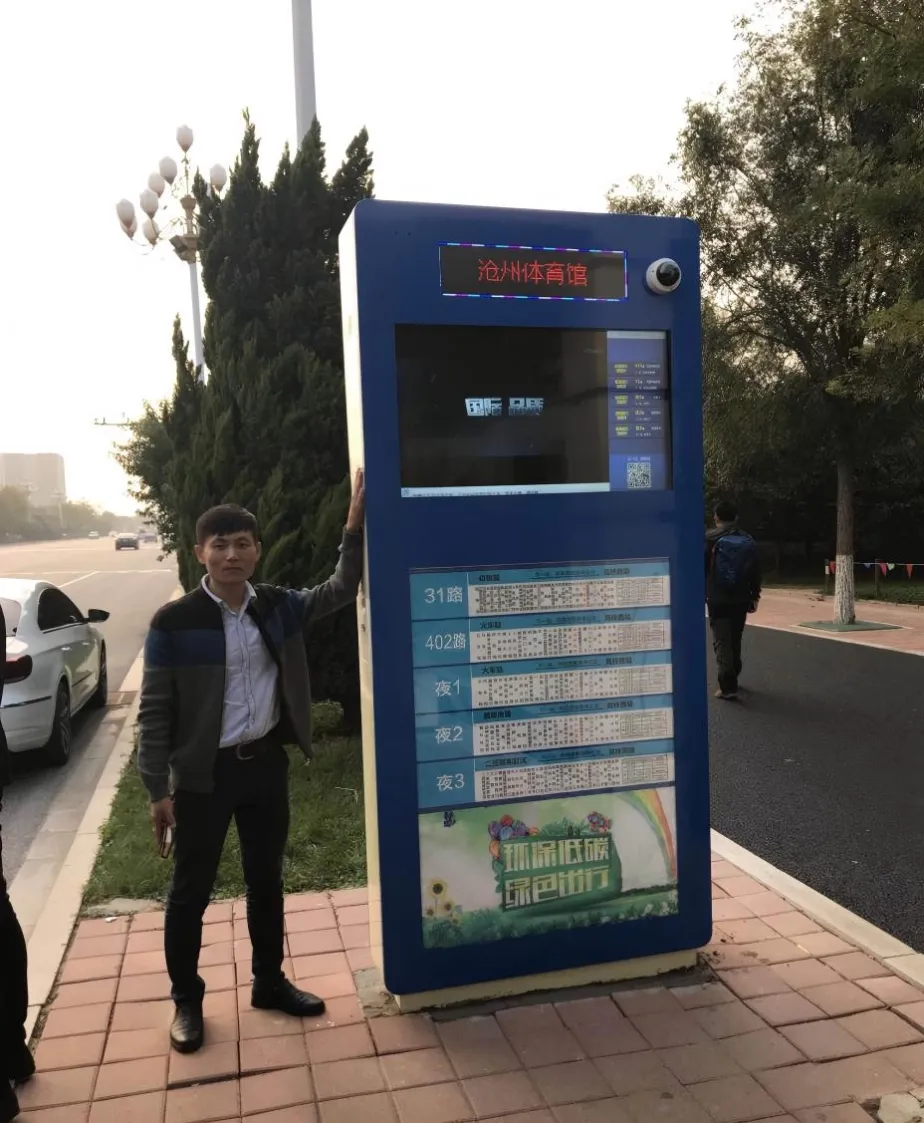

🚌 Bus station/taxi waiting area: arrival information + commercial carousel
⛽ Gas station/charging station: promotions, safety tips, member registration
Alternative Outdoor Display Configurations
Many operators came to us and initially only asked about vertical machines. After chatting, they discovered:
"So your wall-mounted ones can also switch between horizontal and vertical screens?"
"What's the price difference between the canopy frame and the bare screen frame?"
"Is there a customized solution suitable for embedding into the existing steel structure?"
Yes. It's all there.
We are a truly one-stop outdoor digital signage factory from sheet metal to assembly. We do not rely on outsourcing or make changes. If you want a standard machine, we have ready-made drawings; if you want non-standard customization, we will provide you with CAD and samples.
